| Exit concentric until 35 Kw Low noise level of fan Low height of heater |

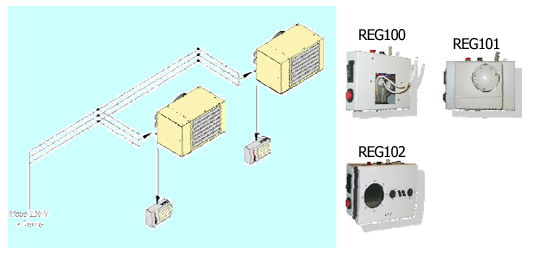

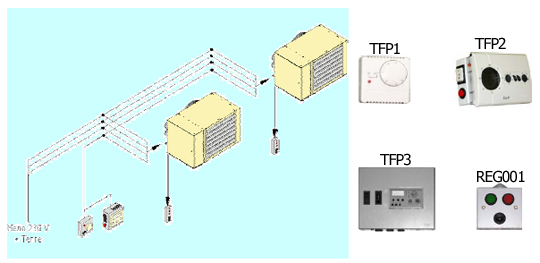

Double louvres series Panel white color RAL 9003 Regulation and control by pilot wire or individual connection |
 |
 |
| Combustion multi-torch with Low Nox emission Electronic ignition with ionisation sensor |
Exit concentric until 35 Kw Low noise level of fan Low height of heater |
Gas Heaters
The axial gas heater YAHTEC ATH was especially studied for heating, of small and great volumes, the commercial and industrial buildings.
This product is designed to offer an economic solution as well in new installation as in restoration of buildings.
It is proposed in two versions :
for models going from 16 to 95 Kw.
|
STANDARD RANGE
|
|||||||||
|
Model |
AT 16 H |
AT 20 H |
AT 28 H
|
AT 35 H |
AT 45 H |
AT 55 H |
AT 75 H |
AT 95 H |
|
|
Input |
kW |
16
|
21
|
28
|
35
|
45
|
55
|
71
|
92
|
| Output | kW |
14.6
|
19.5
|
25.5
|
31.5
|
40.5
|
50
|
64.4
|
84
|
| Air flow at 50°C | m³/h |
1 500
|
1 625
|
2 250
|
3 250
|
4 400
|
5 400
|
6 400
|
8 800
|
| Noise level | dB(A) |
39
|
39
|
40
|
41
|
46
|
51
|
52
|
49
|

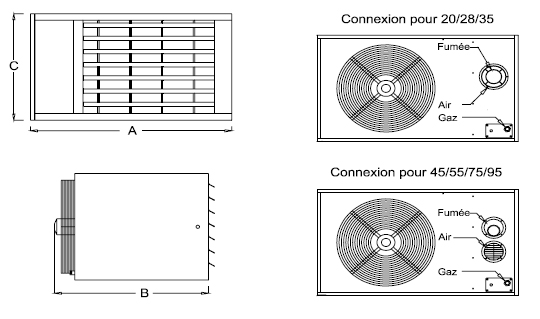

| Width A | mm |
810
|
1040
|
1040
|
1040
|
1040
|
1040
|
1120
|
1120
|
| Depth B | mm |
780
|
800
|
820
|
820
|
820
|
840
|
840
|
840
|
| Height C | mm |
356
|
460
|
460
|
510
|
570
|
700
|
825
|
1075
|

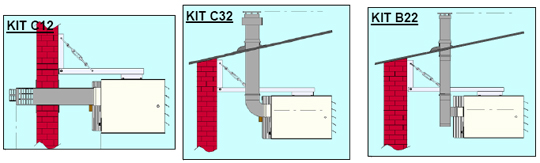

| Exit fume/ Air Input | mm |
80/125
|
100/100
|
130/130
|
|||||
| Weight | Kg |
75
|
82
|
82
|
90
|
105
|
127
|
145
|
185
|
|
Electrical Supply |
Volts |
Mono 230
|
|||||||
|
HIGH EFFICIENCY RANGE
|
||||||||
|
Model |
AR 1 H |
AR 2 H |
AR 3 H
|
AR 4 H |
AR 5 H |
AR 6 H |
AR 8 H |
|
|
Input |
kW |
14.2
|
20
|
27
|
34
|
50
|
60
|
80
|
| Output | kW |
13.1
|
18.4
|
24.8
|
31.3
|
46
|
55.2
|
73.6
|
| Air flow at 50°C | m³/h |
1 500
|
1 650
|
2 300
|
3 250
|
5 300
|
6 500
|
8 800
|
| Noise level | dB(A) |
39
|
39
|
40
|
41
|
51
|
52
|
49
|
| Width A | mm |
810
|
1040
|
1040
|
1040
|
1040
|
1040
|
1120
|
| Depth B | mm |
780
|
800
|
820
|
820
|
840
|
840
|
840
|
| Height C | mm |
356
|
460
|
460
|
510
|
700
|
820
|
1075
|
| Exit fume/ Air Input | mm |
80/125
|
130/130
|
|||||
| Weight | Kg |
57
|
82
|
90
|
100
|
125
|
155
|
185
|
|
Electrical Supply |
Volts |
Mono 230
|
||||||
