DM Series

Enquire about this product or call us on 02476 357960

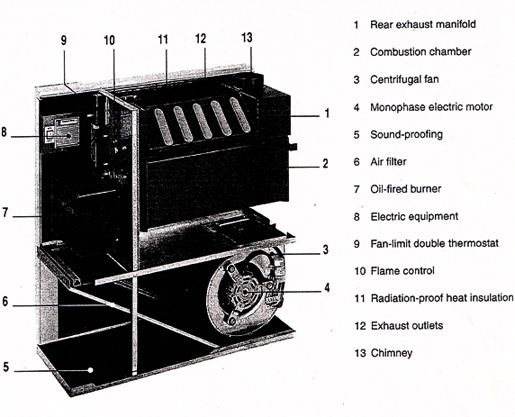

Technical Characteristics

Cabinet in steel, finely epoxy-painted, insulated with radiation-proof and sound-proof material.
Centrifugal fan with dual air intake, particularly silent, with monophase three-speed low absorption electric motor directly coupled.
Electric Euipment. Includes the double FAN-LIMIT thermostat for automatic or manual fan control and for emergency stopping of the burner. Environmental thermostat for automatic regulation with start and stop switch. Switch for changing fan speed.
Oil-fired burner with mechanical self-aspirating pulverisation, complete with control module and electronic control for automatic functioning, flexible tubes and line filter.
Air filter with easy to extract and clean regenerable filtering cell in polyurethane foam.
Adjustable gratings for air diffusion with tilted fins.

TECHNICAL CHARACTERISTICS AND DIMENSIONS

Model	Heating capacity input		Heating Capacity output		Air flow Rate At + 15°C	Static pressure To speeds		Monophase voltage	Electric Output Of fan	Overall dimensions mm			Chimney	Weight
	Kcal/h	Kw	Kcal/h	Kw	M3/h	Average mm H2O	High Mm H2O	Volt/50Hz	W	A	B	C	mm	Kg
DM 15	15.900	18,49	14.000	16,28	850	5	8	230	147	860	350	860	100	82
DM 20	20.400	23,72	18.000	20,93	1.100	5	8	230	147	960	390	960	120	97
DM 30	29.350	34,13	26.000	30,23	1.600	7	15	230	420	1.030	430	1.030	130	116

DM Series

COMMERCIAL OIL FIRED CABINET HEATERS

Warm air heating is long proven as a comfortable low cost alternative to boiler systems for many showrooms, retail and commercial premises. The aesthetic compact design combines form with function whilst the purpose designed burner housed within a sound insulated compartment allows warmth without the instrusion of excessive noise.

TECHNICAL DATA

Model		55	70	100
Heat Output	Kw	16.3	20.09	30.2
Btu/h	55,600	71,300	103,000
Electrical Supply	V/ph/hz	230/1/50	230/1/50	230/1/50
Fuse Rating	Amps	5	5	7
Flue Diameter	Mm	100	125	125
Ins	4	5	5
O/A Height	Mm	860	960	1030
Ins	33.9	37.8	40.6
O/A Width	Mm	350	390	430
Ins	13.8	15.4	16.9
O/A Depth	Mm	860	960	1030
Ins	33.9	37.8	40.6
Weight	Kg	82	97	116
lbs	180	213	255
Noise @ max. speed	dBA	37	38	41

SPECIFICATION

Application: a range of oil fired commercial cabinet heaters, vertical floor mounted suitable for commercial premises where a smaller and quieter unit is required.

Casing: manufactured from electro zinc coated steel sheet finished with durable stove enamelled epoxy polyester powder paint.

Heat Exchanger: formed and welded from 304/316 stainless and 43A steel.

Burner: concealed (in cabinet) high efficiency Riello pressure jet suitable for operation on 28 or 35 second fuel and complete with flame monitoring safety controls. Commercial oil fired heaters are supplied with a loose fusible link, fire valve and oil filter.

Controls: heaters are ready for automatic operation and are complete with a loose control panel including seven day time clock, room and frost protection thermostats and a facility to enable ‘fan only' summer air movement.

Air Distribution: via a quiet yet powerful 2 speed centrifugal fan with adjustable outlet grilles which effectively discharge the warm air directly into the area to be heated. Alternatively the grilles can be removed to provide a connection for a ductwork system.

Testing: every heater is individually inspected, test fired and safety function tested prior to despatch.
